Concrete Floor Thickness Guide for Car Hoist Setup

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor meets all essential specifications. A robust and stable foundation is not only vital for the optimal functionality of the hoist but also critical for safeguarding your vehicles and anyone operating the equipment. By engaging in proper preparation and strictly adhering to established guidelines, you can significantly enhance both the performance and longevity of the hoist, ensuring it serves you well for years to come.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This specific measurement is crucial, as it facilitates the even distribution of weight from both the vehicle and the hoist, thereby minimising the risk of cracking or sinking over time. For heavier-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance and safety throughout the lifespan of the installation.

Comprehensive Steps to Accurately Assess Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is an essential element in the safe installation and operation of a car hoist. Several critical factors must be assessed when determining the appropriate depth for your slab to ensure it can adequately manage the loads it will encounter during use. A solid understanding of these factors can help avoid costly mistakes and significantly enhance the safety of your garage setup, ensuring peace of mind.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Hence, it is crucial to comprehend the total weight that your concrete floor must support. This evaluation includes not only the weight of the vehicle but also the weight of the hoist itself, which can considerably add to the overall load on the concrete.

A standard passenger vehicle generally weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Moreover, it is prudent to consider additional weight as a safety buffer to ensure that the structure can handle unforeseen circumstances, providing extra reassurance for your installation.

For the majority of home garages, a concrete thickness ranging from 100 mm to 150 mm is typically sufficient. However, if you plan on lifting significantly heavier vehicles, it may be necessary to opt for a thicker slab to ensure safety and stability during operation, ultimately protecting your investment.

Engaging a structural engineer is a wise and proactive choice. They possess the expertise to offer personalised advice and assist you in calculating the precise thickness required based on your unique circumstances and specific lifting needs.

Exploring Various Car Hoist Types and Their Concrete Thickness Requirements

It is essential to recognise that different types of car hoists have unique requirements regarding concrete thickness. Two-post lifts and four-post lifts are two of the most popular options among homeowners looking to integrate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This understanding is vital for ensuring the safety and functionality of your installation.

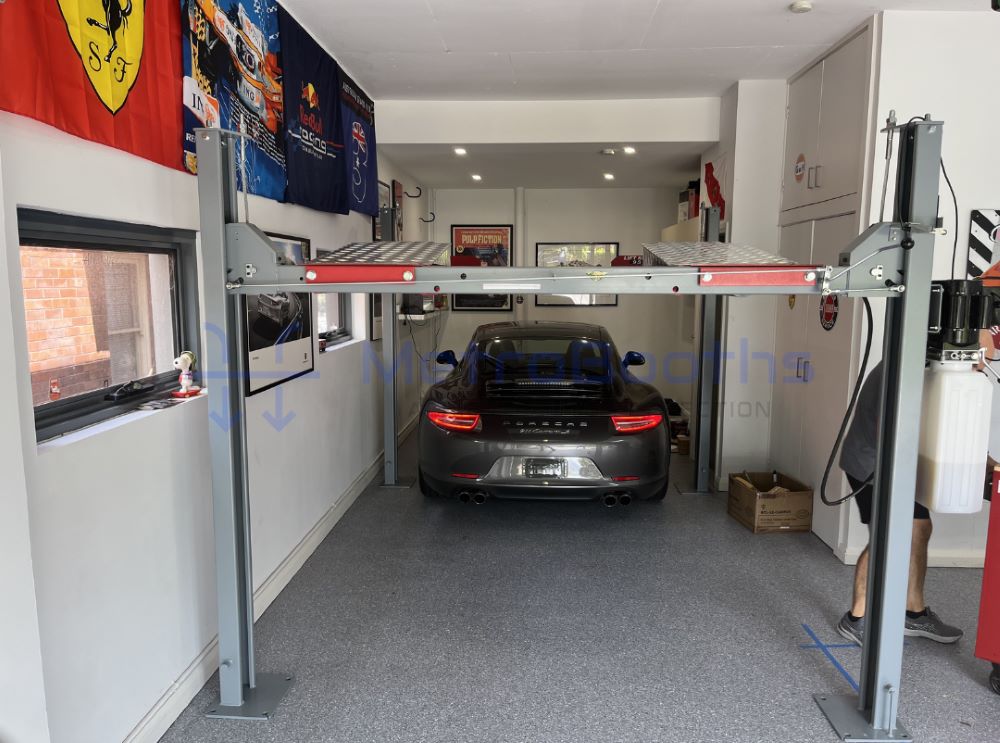

In contrast, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This differentiation plays a significant role in your planning and installation process, impacting the overall safety and performance of your hoist.

Always consult the manufacturer's specifications for the hoist you are considering, as these documents will usually outline the minimum concrete thickness necessary for safe operation. Adhering to these guidelines is crucial for achieving optimal performance and longevity of your installation.

Remember that these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so careful consideration is necessary.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness when it comes to supporting heavy loads effectively. Stronger concrete can often be successfully used at a thinner depth while still providing adequate support during the operation of a car hoist. This factor is particularly relevant in the context of a car hoist installation, where safety and reliability are paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, ensuring that your installation can withstand daily pressures.

Implementing reinforcement techniques is essential for significantly enhancing the durability and structural integrity of your concrete. The addition of steel mesh or rebar can drastically improve the overall strength of your concrete floor, allowing you to utilise a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh is a reliable choice. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it a practical consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, ultimately enhancing the longevity of your installation.

Vital Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring peace of mind.

Critical Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick, constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, preventing any potential issues once the hoist is operational.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide guidance on the best course of action.

Essential Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist has been installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an attentive eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could adversely affect the functionality of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to significant structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and may render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs while ensuring safe usage for all involved.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Inquiries About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequent questions related to the concrete requirements for various types of lifts, providing clarity and guidance for potential installers.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring compliance with safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and operational reliability.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe and effective operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, safeguarding both vehicles and operators alike.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring compliance with safety standards.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, ultimately enhancing your garage's functionality.
