Clay Soil’s Effect on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have discovered wet areas, sinking spots, ongoing blockages, or cracks in your foundation, you might be concerned that reactive clay soil is causing damage to your underground pipes.

The foundation in Caboolture consists of reactive clay that expands when wet and contracts as it dries, sometimes changing in volume by 20% or more. This continual fluctuation exerts significant pressure on underground pipes during wet conditions, making them susceptible as the soil dries out. Older clay sewer and galvanised water pipes are particularly at risk. A camera inspection can help detect damage early, and pipe relining often serves as a practical solution that avoids the need to excavate your garden.

In Caboolture, your underground pipes face an ongoing struggle against the surrounding soil.

This persistent battle can result in serious pipe damage over time. By the time visible signs appear, the underlying issues may have been developing for a considerable duration.

How Do Fluctuations in Clay Soil Contribute to Pipe Damage?

Four critical phases are involved: wet swelling (compression), dry shrinking (loss of support), the repetitive cycle of stress, and the common drought-to-flood transition in Southeast Queensland. Each cycle worsens existing cracks and misaligns joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb moisture and expand. This expansion creates crushing pressure on pipes from all sides, potentially forcing joints together or pulling them apart. Rigid pipe materials are especially vulnerable to cracking under such extreme pressure.
• The dry phase: Once the rain stops and the clay dries, it contracts and separates from the pipes. This creates voids and gaps, leading to sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repeat cycle: This process of expansion and contraction occurs repeatedly with shifting weather conditions—dozens of times a year in Caboolture's climate. Each cycle intensifies stress on the pipes and gradually enlarges existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and heavy wet seasons. Following an extended dry period, the clay shrinks significantly. When heavy rain eventually arrives, the soil expands rapidly, placing pipes—which may be situated in loose, cracked ground—under sudden, enormous pressure.

Which Types of Pipes Face the Greatest Risk of Damage?

Older clay sewer pipes (from properties constructed before the 1970s), galvanised steel water mains (from homes built prior to 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally perform better, but inadequate backfill can still lead to joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle nature and heavy construction, combined with mortar joints, make them susceptible to cracking.
• Galvanised steel pipes: Utilised for water supply in homes constructed before 1985, these pipes are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still lead to joint separation. Poor backfill during installation can heighten the vulnerability of PVC pipes.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Signs Should You Look Out for That Indicate Damage to Underground Pipes?

Stay alert for wet spots during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, unusually lush patches of grass, trees heavily rooting in a specific area, and cracks in your slab. If you notice two or more of these signs, schedule a camera inspection without delay.

• Wet patches in the garden during dry spells—this may indicate water leaking from a damaged pipe and saturating the soil.
• Sinkholes or soft spots—these develop when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant odours in your garden—a cracked sewer pipe may leak sewage into the surrounding soil.

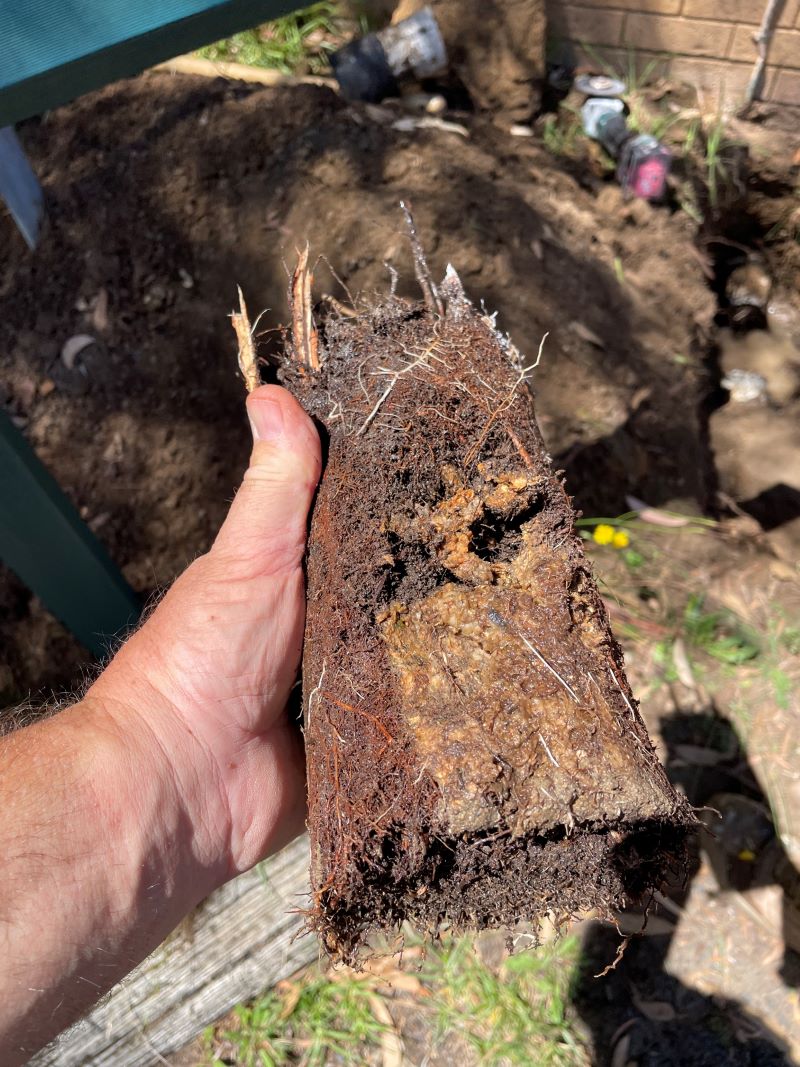

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Are We Able to Detect Pipe Damage?

We utilise CCTV drain cameras to visually inspect the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, along with a comprehensive property assessment to predict potential future damage.

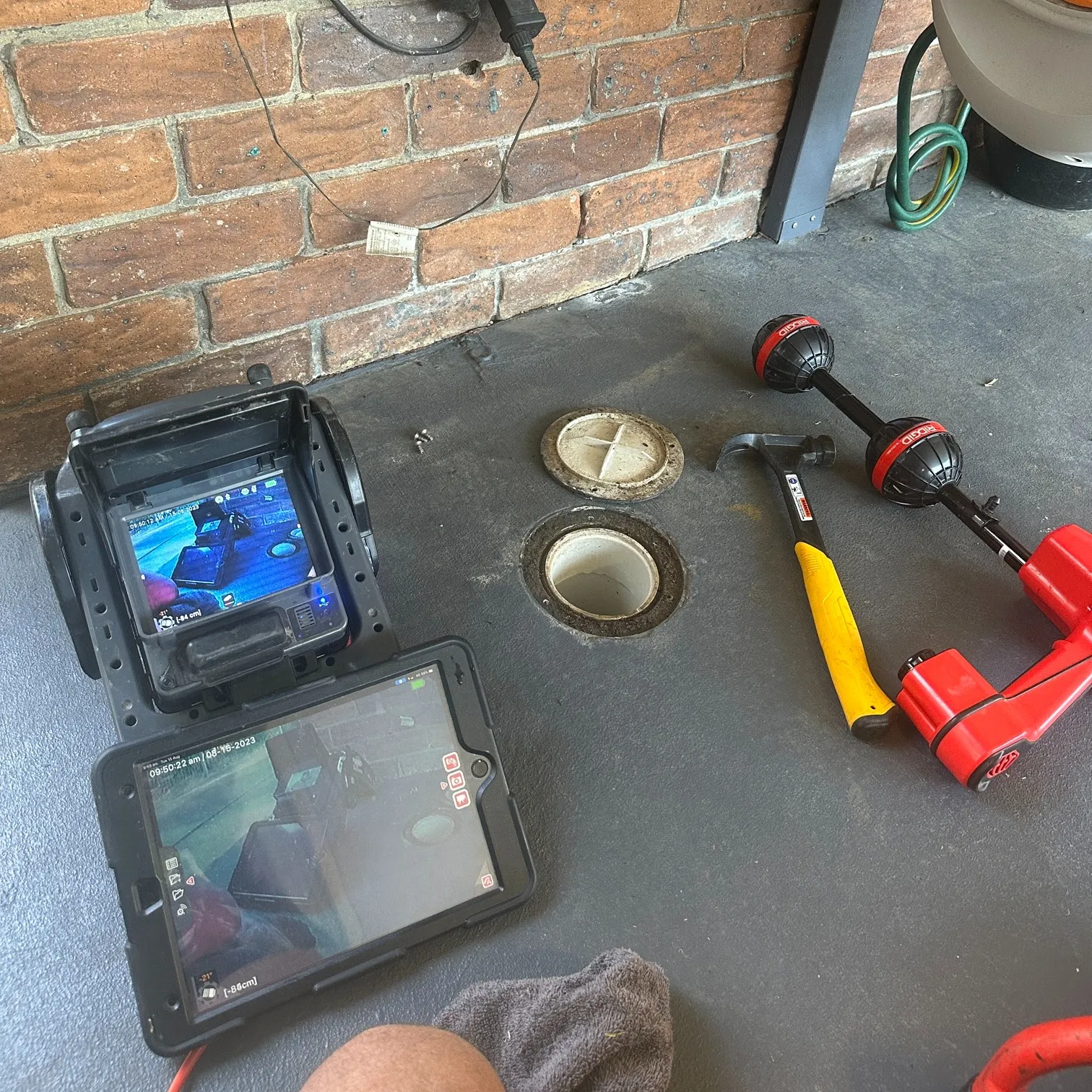

• CCTV drain camera inspection: A camera navigates through the pipe, providing a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment accumulation, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We assess the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where issues may arise next.

What Solutions Are Available for Addressing Pipe Damage?

Hydro jetting is employed to clear immediate blockages. For cracked or root-invaded pipes, pipe relining offers a highly effective solution—this process does not require excavation. Installing French and spoon drains can help alleviate future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil tends to worsen over time. The situation does not stabilise; it deteriorates further. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately obstructing the pipe entirely.

The most cost-effective repairs are those made at an early stage. A camera inspection reveals the precise conditions underground, enabling you to plan necessary repairs before an urgent situation develops.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions Regarding Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Causing Damage to My Pipes?

While you can reduce the risk of damage, complete prevention is not achievable. Regularly watering the area around your home during dry spells can help mitigate the shrinkage cycle. Effective tree management can lessen root pressure on pipes. Proper drainage systems also assist in reducing soil saturation. Regular monitoring of pipes in reactive clay soil is crucial—camera inspections can help identify issues early.

What Are the Repair Costs for Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section generally begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and accessibility. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe features a smooth, jointless interior that provides better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The main advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Indicators to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Not Read This Article?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to DIY the plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
