Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, a 30kWh battery storage system, and ducted air conditioning, with no need for a three-phase upgrade.

Choosing Precision Electrical & Air for Your Switchboard Upgrade Needs

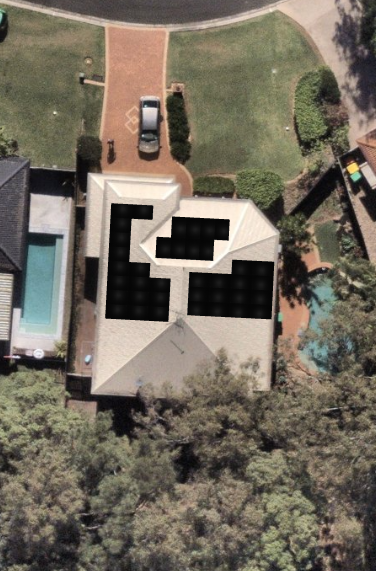

This homeowner in Chelmer undertook a significant renovation project that encompassed the installation of an efficient 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire household. Furthermore, a new ducted air conditioning system was integrated into the overall plan to enhance comfort. Prior to the connection of these advanced systems, it was imperative to assess and upgrade the existing switchboard, ensuring it met contemporary standards and effectively managed the increased electrical loads introduced by these installations.

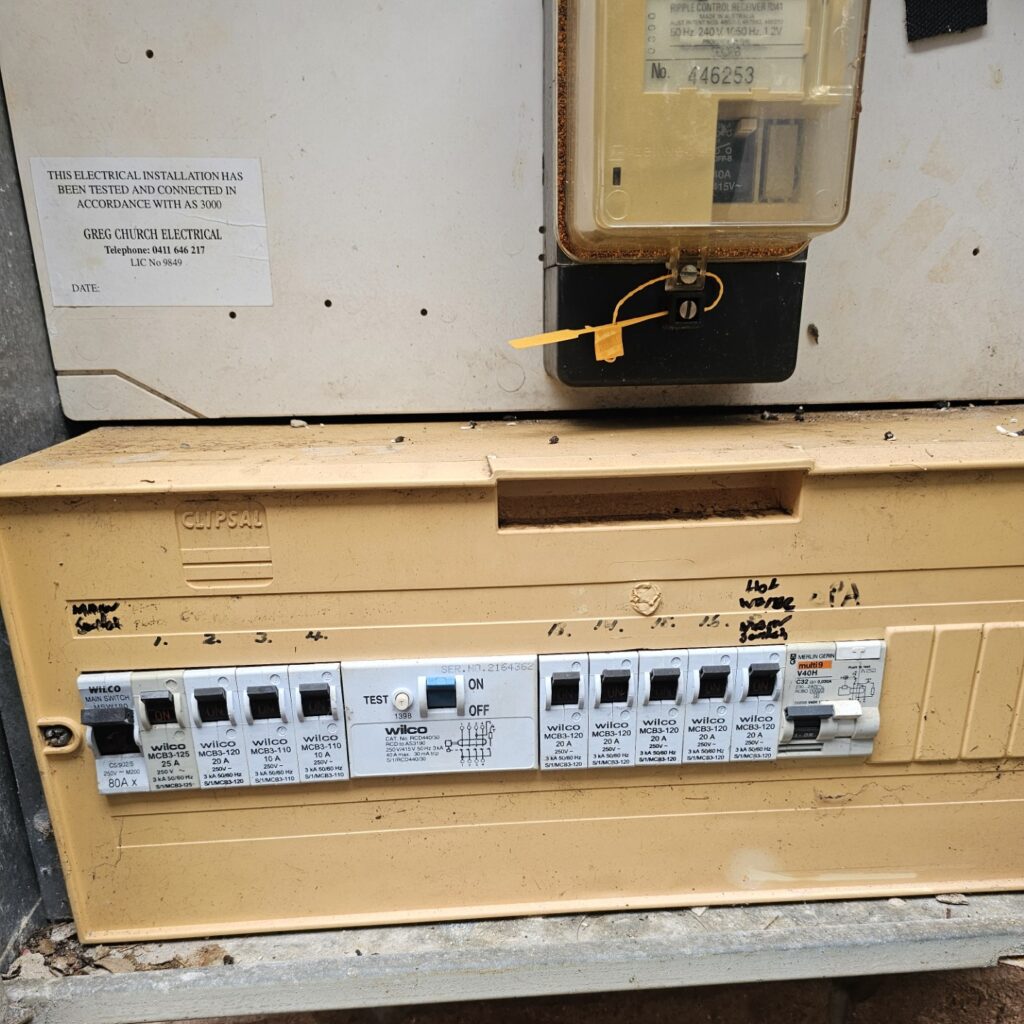

The initial switchboard was outdated, featuring obsolete circuit breakers and only one Residual Current Device (RCD) that provided limited protection for the entire property. This configuration was inadequate for supporting solar energy integration and battery storage. Additionally, the circuit labeling was insufficient, rendering it non-compliant with modern standards governing current energy generation systems. Such non-compliance posed serious risks to the efficient operation of the newly upgraded systems, thus necessitating immediate action.

Is a Three-Phase Upgrade Really Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system paired with a 30kWh battery storage unit, it is a common misconception that a three-phase upgrade is obligatory. This misunderstanding could lead to significant financial implications for homeowners, potentially incurring costs ranging from £3,500 to £6,000, along with a lengthy wait for approval from Energex regarding network modifications.

In-Depth Technical Assessment to Determine Upgrade Necessity

Two primary factors were crucial in assessing whether a three-phase upgrade was genuinely required. Firstly, the supply cable for the residence was strategically located near the street junction, allowing the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, both the solar and battery systems were specifically engineered to decrease demand on the grid rather than increase it, thereby eliminating any technical justification for a three-phase upgrade from the network's perspective. Furthermore, the ducted air conditioning system was also confirmed to comply with the necessary parameters for effective single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and efficiently manage all new electrical loads without compromising safety or adherence to regulatory standards.

Comprehensive Evaluation of Installed Components for Safety and Compliance

The existing switchboard underwent a complete dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton. Each breaker was meticulously labelled for straightforward identification. Circuits were methodically separated; dedicated circuits were allocated to power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning, enhancing safety and ensuring compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the use of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and enhanced efficiency.

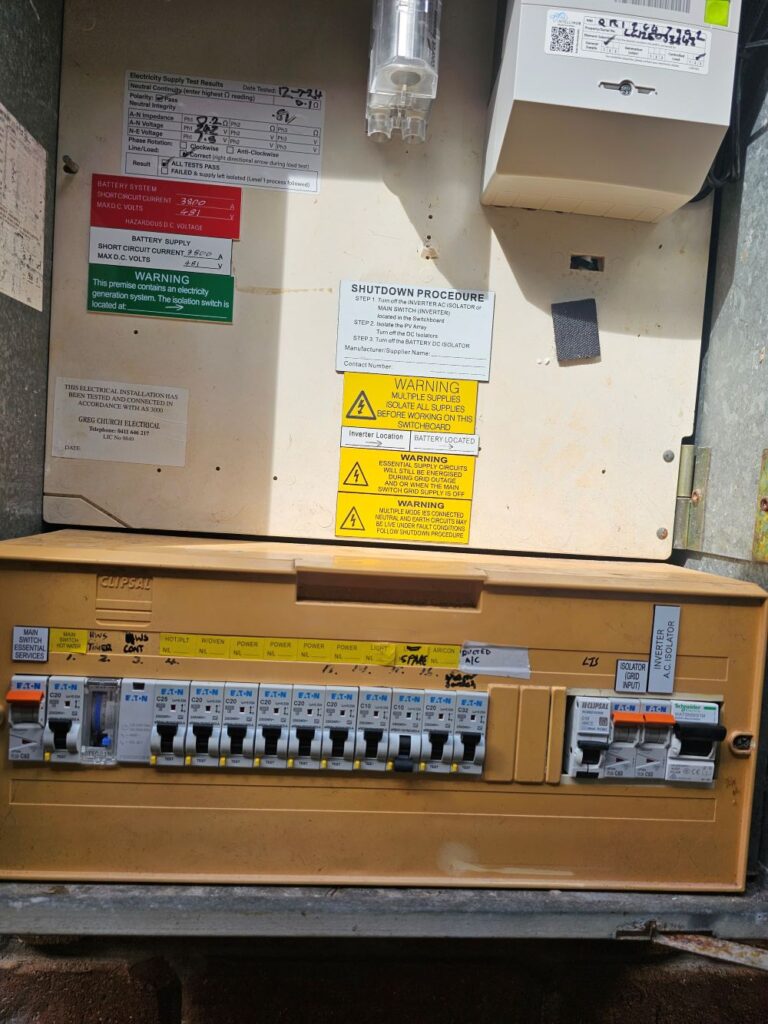

The upgraded switchboard was specifically designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted successfully and documented for the switchboard.

The completed switchboard now fully adheres to the latest Australian standards, guaranteeing it is suitably prepared for any future electrical service work required at the property.

Homeowner Reaps Rewards from Successful Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses linked to a three-phase upgrade that was not essential for their specific situation.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be essential in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to carry out a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling; you will receive an accurate evaluation tailored specifically to your home.
